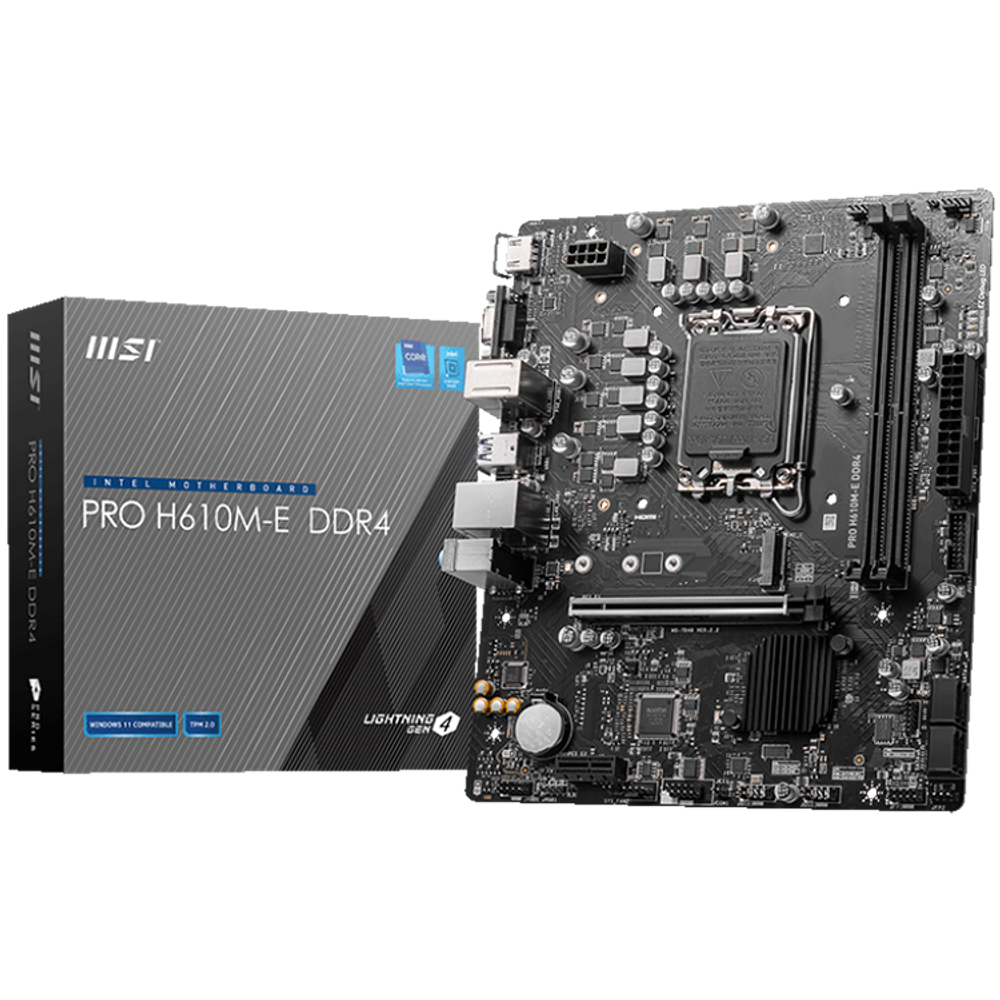

MSI PRO H610M-E DDR4, Micro-ATX

Šifra proizvoda: 5ZXXAJ4

Cijena

185,00 КМ

Cijena sadrži PDV

175,75 КМ DAJ5

Ostvari dodatnih 5% popusta uz upisivanje promo kupona DAJ5

MSI PRO H610M-E DDR4, Micro-ATX, Socket 1700, Dual Channel DDR4 3200(OC)MHz, 1x PCIe x16 slots, 1x M.2 slots, 1x HDMI, 1 x VGA, 2x USB 3.2 Gen 1, 4x USB 2.0, 3Y

Pročitaj više

Prodavač

IT technology

Pogledaj sve

Sigurna kupovina

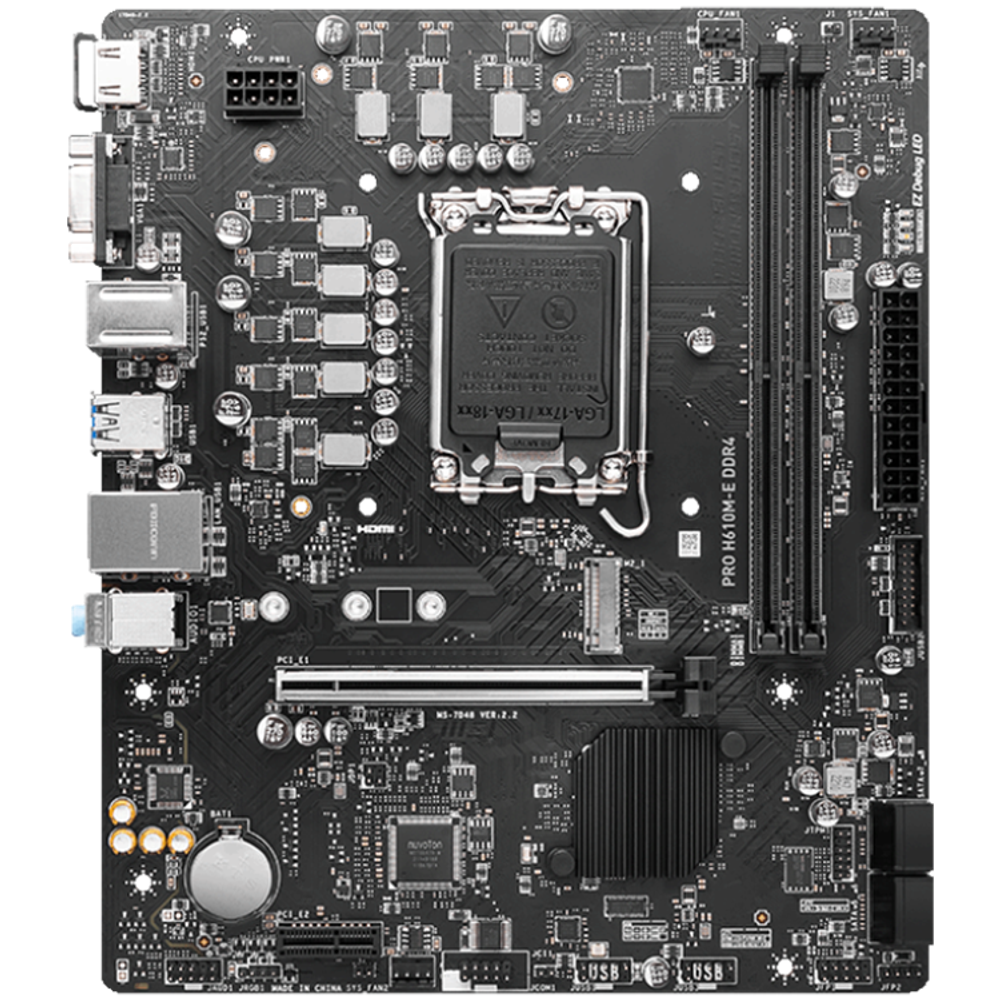

12. GEN CORE READY - PRO H610M-E DDR4 je kompaktna mikro-ATX matična ploča opremljena najnovijim Intel H610 čipsetom (LGA 1700, 12. Gen Core spreman); VRM ima MSI Core Boost tehnologiju za poboljšanu stabilnost i performanse

GEN4 GPU SLOT, DUAL DIMMS - PCIe 4.0 x16 slot (sa čeličnim okvirom) podržava najsavremenije grafičke kartice; Dvostruki DIMM sa dvokanalnom DDR4 arhitekturom podržavaju do 64 GB SDRAM-a (3200MHz)

GEN3 M.2 SSD STORAGE - M.2 Gen3 x4 32Gb/s slot je dizajniran da maksimizira NVMe bazirane SSD performanse; SSD memorija skraćuje vrijeme učitavanja

PASIVNO & AI HLAĐENJE - Rashladni hladnjak za čipset pruža pasivno hlađenje; PCB baza sa zadebljanim bakrom pomaže u rasipanju toplote; Frozr AI hlađenje automatski prilagođava postavke sistemskog ventilatora na osnovu temperatura CPU-a i GPU-a

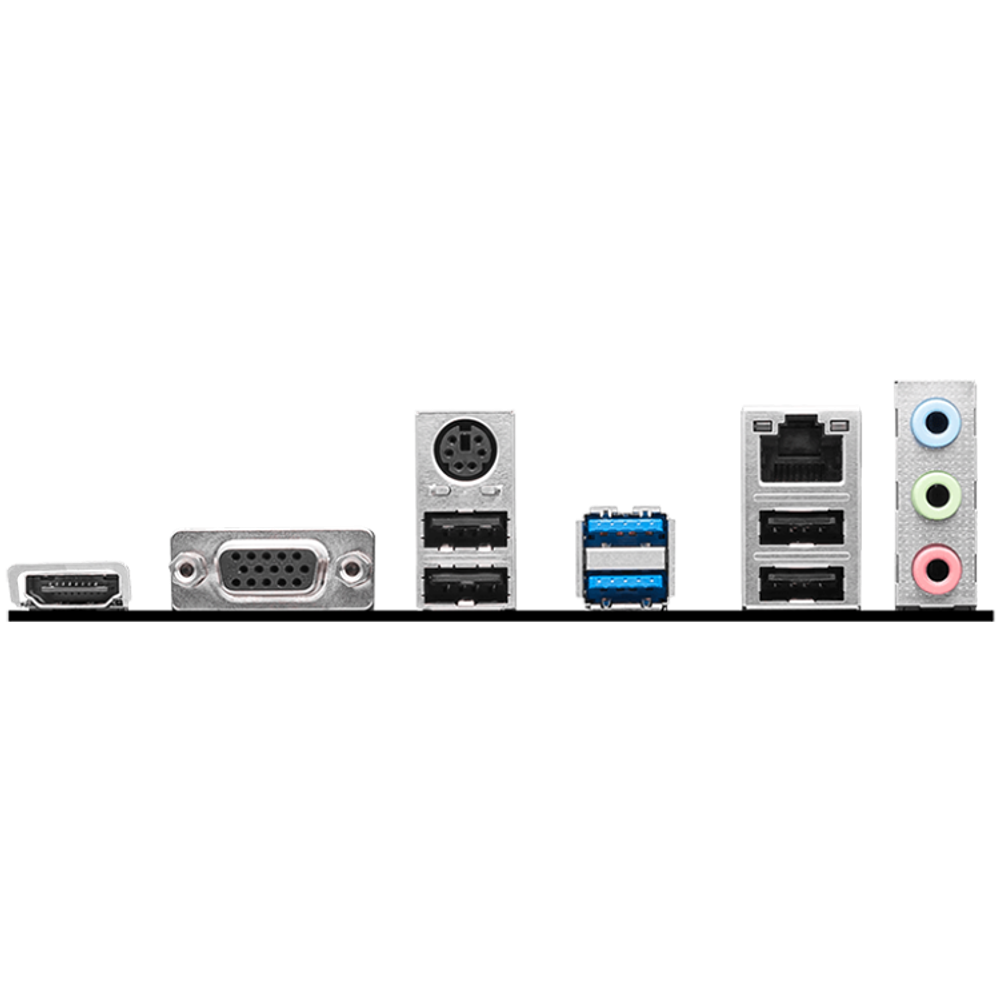

OSTANITE POVEZANI - Karakteristike Realtek RTL8111H 1G LAN; Fiksni portovi uključuju stari VGA, kao i najnovije HDMI 1.4 portove (4K/30Hz) - zahteva CPU sa integrisanom grafikom; 4 x USB 3.2 Gen 1 Type-A (5Gb/s) i 7.1 HD Audio sa Audio Boost

SPECIFIKACIJE

Socket: 1700
Čipset: Intel® H610
Kanali memorije: Dual
Slotovi DIMM: 2
Maksimalna memorija (GB): 64
PCI-E X16: 1
PCI-E X1: 1
SATAIII: 4
M.2 utor: 1
TPM (HEADER): 1
USB 3.2 portovi (prednji): 2 (Gen 1, Tip A)
USB 3.2 portovi (stražnji): 2 (Gen 1, Tip A)
USB 2.0 portovi (prednji): 4
USB 2.0 portovi (stražnji): 4
Audio portovi (stražnji): Realtek® ALC897 Codec
VGA: 1
HDMI: 1
DirectX: 12
Podrška za CPU: Podrška za Windows® 11 64-bit, Windows® 10 64-bit
Format ploče: Micro-ATX

Specifikacija

LAN	1 (RJ-45)
VGA	1 (15-pin D-sub)
HDMI	1 (HDMI (Type A))
PS/2	1
Chipset	Intel H610
USB 2.0	4 (USB 2.0 (type A))
EAN Code	4711377002660
Integrated	Storage Controller:SATA III-600 (4)Storage Controller:PCI Express 3.0 x4 (1 x M.2 (Key M))
Width (mm)	236 mm
Form Factor	Micro ATX
Height (mm)	200 mm
LAN Chipset	Realtek RTL8111H
Memory Speed	2133MHz(PC4-17000) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600)
Package Type	Box
Packs in Box	1
Audio Chipset	Realtek ALC897
CPU podnožje	Socket 1700
USB 3.2 Gen 1	2 (USB 3.2 (type A))
Cable Included	2 x SATA cables
LAN Integrated	yes
Pieces in pack	1
Vrsta memorije	DDR4 SDRAM
Audio Interface	3 (3.5-mm minijack)
Device Location	Integrated
Memory Features	Two DDR Channels Unbuffered Single Rank
Audio Integrated	yes
Audio Output Mode	7.1 Channel Surround
Mainboard Features	RGB LED
Memory Form Factor	DIMM 288-pin
PCI Express 3.0 x1	1
PCI Express 4.0 x16	1
Included Accessories	I/O Shield Quick Start Guide Driver CD
Power Connectors Type	24+8 pin
Warranty Term (month)	36 month(s)
Box Weight Brutto (kg)	0.1 kg
Pack Weight Netto (kg)	0.1 kg
Pack Weight Brutto (kg)	0.1 kg
Compliant Audio Standards	High Definition Audio
Memory Slot Total Quantity	2
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet
Warranty Products Returnable	Yes
Warranty validation Criteria	Serial Number
CPU Maximum Quantity Supports	1
Provides Error Checking Method	non-ECC
Supports Central Processor Unit	Intel 12th Gen Processors Intel 13th Gen Processors
Retail Packaging Net Weight Carton	0.1 kg
Retail Packaging Net Weight Plastic	0.1 kg
Maximum Installable System Memory Storage Capacity	64 GB
